Overfill Alert Gauges
Tank Overfill Prevention Monitor
For over 75+ years, Krueger Sentry Gauge has been manufacturing a variety of reliable overfill alert gauges. These are high-grade instruments engineered to visually alert operators that their AST (tank) is almost full. These gauges come with monitors equipped with a simple pop-up mechanical design which promotes easy installation, maximum durability and low upfront costs.
Learn more about the overfill alert gauge we fabricate:
Overfill Prevention Gauge for Aboveground Storage Tanks (AST Gauge)
The Overfill Alert Gauge is a high-level visual gauge designed to visually alert you that your AST (tank) is near full. This overfill monitor’s simple pop up mechanical design promotes easy installs, maximum durability, and low upfront costs.
Also, by purchasing our audible Overfill Alarm Accessory, you can turn your visual overfill gauge into an audible overfill alarm.
The Overfill Gauge has also been approved by the Florida Department of Environmental Protection for overfill prevention on AST’s.
Overfill Alert Gauge Benefits
Krueger Sentry Gauge tank overfill prevention monitor gauges have a number of benefits, including:
- Durability
- Resistance To High Temperature & Pressure
- Easy Readability
- Minimal Maintenance
- Accuracy
- Customizability
Applications for Overfill Alert Gauges
Due to these benefits, Krueger Sentry Gauge’s liquid level gauges are an excellent option for measuring a variety of liquids, including oil, butane, propane, corn syrup, ethanol, alcohol, hydrochloric acid, unleaded kerosene, naphtha-kerosene blend, avgas and biofuels. These instruments are, therefore, necessary for a wide range of industries including:
- Chemical
- Petroleum
- Wastewater
- Government & Military
- Railcars
- Lube Oil Delivery
- Heating Oil Delivery
- Aircrafts
- Agriculture
- Petrochemical
- Food & Beverage
Overfill Alert AST Gauge Materials Options
Standard Overfill Alert Gauge
This model of pop-up overfill alert gauge (Standard Model) has standard galvanized wetted rods, polypropylene floats, and aluminum bushing.
This mechanical overfill alert gauge is custom-made in-house to fit your overfill depth requirements. Our flexible production process allows for custom sizes that range from 6 inches to 76 inches in total length.
Type OF-S1 overfill gauge
This model of pop-up overfill alert gauge (stainless level one) has standard stainless steel wetted rods, polypropylene floats, and aluminum bushing.
This mechanical overfill alert gauge is custom-made in-house to fit your overfill depth requirements. Our flexible production process allows for custom sizes that range from 6 inches to 76 inches in total length.

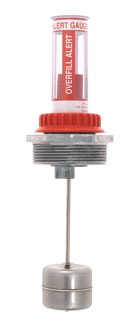

Type OF-S2 overfill gauge
This model of pop-up overfill alert gauge (stainless level two) has standard stainless steel wetted rods, stainless steel floats, and aluminum bushing.
This mechanical overfill alert gauge is custom-made in-house to fit your overfill depth requirements. Our flexible production process allows for custom sizes that range from 6 inches to 40 inches in total length.
Type OF-S3 All Stainless overfill gauge
This model of pop-up overfill alert gauge (stainless level three) has standard stainless steel wetted rods, stainless steel floats, and stainless steel bushing.
This mechanical overfill alert gauge is custom-made in-house to fit your overfill depth requirements. Our flexible production process allows for custom sizes that range from 6 inches to 40 inches in total length.

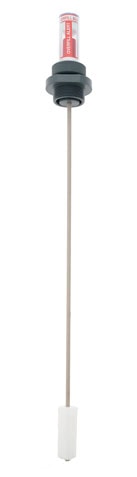

Type po- All Plastic overfill gauge
This model of pop-up overfill alert gauge (all plastic-type PO) has the glass calibration, a PVC gauge guard, PVC bushing, Peek plastic rods, and polypropylene float.
This mechanical overfill alert gauge is custom-made in-house to fit your overfill depth requirements. Our flexible production process allows for custom sizes that range from 6 inches to 40 inches in total length.
Overfill Alert Gauge Accessories
There are a number of additional accessories each client can choose from to meet specific needs. These accessories include:
- Direct Mount Alarms – an audible alarm that mounts directly to the gauge to provide your choice of overfill or low-level warnings
- Remote Mount Alarms – an audible alarm that can be remotely wired to provide your choice of overfill or low-level warnings
- Aluminum Lock Nut – replaces the red lock nut for added durability.
- Gauge Guard – protective cover that replaces the red locking nut providing protection from physical damage and weathering damage (it also helps with passing fire inspections)
- Glass Calibration – provides increased protection from heat, fumes, and weathering (it also helps with passing fire inspections
At Krueger Sentry Gauge, our overfill alert gauges are custom-made in-house to fit each customer’s specific requirements. Our flexible production process allows for custom sizes that range from 6 inches to 76 inches in total length. Please contact us today to find out more.
