New law requires oil heat system upgrade – Boston Real Estate – Boston.com

Under a new Massachusetts oil heating law which went into effect on September 30, 2011, every homeowner with an oil heating system is required to install an oil safety valve or an oil supply line with protective sleeve in their system. The cost is approximately $150 to $350 depending on the system. The required upgrade is to prevent leaks from tanks and pipes that connect to your furnace. The upgrade will reduce the risk of an oil leak so by making a relatively small expenditure now, you can prevent a much greater expense in the future.Who Must Upgrade?
Owners of 1- to 4-unit residences that are heated with oil must already have or install an oil safety valve or an oil supply line with a protective sleeve. Installation of these devices must be performed by a licensed oil burner technician. Technicians are employed by companies that deliver home heating oil or are self-employed. It is important to note that heating oil systems installed on or after January 1, 1990 most likely are already in compliance because state fire codes implemented these requirements on new installations at that time.

Who Is Exempt? Homeowners are exempt from taking these leak prevention steps if: • the oil burner is located above the oil storage tank and the entire oil supply line is connected to and above the top of the tank OR • an oil safety valve or oil supply line with protective sleeve was installed on or after January 1, 1990, AND • those changes are in compliance with the oil burning equipment regulations; a copy of the oil burner permit from the local fire department may be used to demonstrate compliance.

www.ksentry.com

Deleware Department of Natural Resources

http://www.dnrec.delaware.gov/tanks/Documents/AST%20forms/AST%20Registration.pdf

Aboveground Storage Tank Registration. Doc. # 40-09-03/02/07/02

Krueger Sentry Gauge can fulfill requirements 18 and 19 of the DNR Registration Form.

18. Overfill Protection (High Level Alarm, Automatic Shut-off, Mounted Sight Glass, Manual Gauge, etc.)

19. Leak Detection (Visual Monitoring, In-tank Gauging System, Interstitial Monitoring, Soil Vapor Monitoring, SIR, Non-destructive testing, etc)

Links to applicable Products in this Post

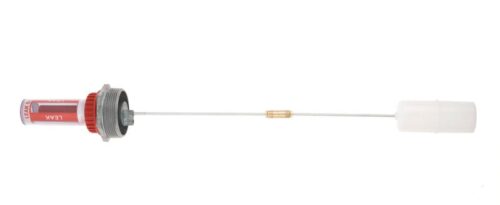

Leak Gauge

Overfill Gauge

Therma Level Gauge

Audible Alarm Accessory

Depending on your application:

Parts and Accessories to make your gauge more durable.

Blogged by:

Lee Geurts- Krueger Sentry Gauge Co., Inc.

We hope everyone had a great holiday, and I would like to wish everyone a Happy New Year.

A few quick facts from Wisconsin:

1. We did not have a price change this year, but we did vastly improve our price book.  If you want one and don’t get one soon, let us know.
2. The Green Bay Packers are 15-1 and heading to the Playoffs.  I would like to gloat that the Lions could not even beat us with our back up QB in the game, but that kind of bragging would be premature.  Much like Suh’s silly celebration during the game when he got a sack.  I will not stoop to such lows.  Our goal is the Super Bowl.
3. The Wisconsin Badgers are in the Rose Bowl for the second straight year.  Win or Lose, it has been a great year for them.  I will be leaving work early today so as not to miss the game.
4. The fax machine had over a hundred orders on it this morning after our week off.  After a strong 2011 it looks like 2012 is starting off pretty good.
5. It was below zero this morning when I came into work.  Looks like winter is finally here.  For those of you in Florida and other warm locales, when you call and tell me about your 80 degree weather it just makes me mad…  So let’s just keep that to yourself…

Happy New Year to all from all of us at Krueger Sentry Gauge.

Lee Geurts

www.ksentry.com

Inspectors from the state Department of Environmental Resources are ramping up efforts to find unregistered fuel storage tanks, as one local farmer discovered when he was recently fined by the DEP because he had not obtained a permit for his 8,000-gallon tank.

Why the increased scrutiny?

According to DEP spokesman Kevin Sunday, there was no one specific instance that sparked the agency’s actions to seek out unregistered fuel tanks.

“This is something that the department has been aware of for some time,” Sunday said, “and with the winter months coming up, we wanted to get everyone on board.”

The DEP’s effort, Sunday said, “is to make sure we register both in-ground and above-ground tanks that are not currently registered.”

So in October, DEP sent letters to 1,172 fuel oil providers across the state asking them to help find unregistered tanks. Fuel distributors are required to ask the tank owner to provide a DEP-issued registration certificate before any fuel (gasoline, diesel fuel or kerosene) can be placed in the tank.

“If the distributors deliver product to an unregistered storage tank, they are also liable for any damages” that may occur if fuel escapes from a leaky tank, Sunday said.

If DEP is not aware of unregistered tanks, it cannnot conduct routine inspections on them and the tanks could pose a threat to the environment if the tank or its pipes fail.

Read more: http://lancasteronline.com/article/local/543126_Got-a-permit-for-that-storage-tank-.html#ixzz1gKr8vuzo

Diesel fuel leak closes UC Berkeley’s Stanley Hall

By Robert Jordan and Sean Maher
Contra Costa Times

Posted: 12/11/2011 11:03:22 AM PST

Updated: 12/11/2011 09:31:07 PM PST

Click photo to enlarge

A university employee posts a warning sign by Strawberry Creek after a diesel fuel spill closed…

BERKELEY — Emergency crews from five different agencies spent Sunday cleaning up a diesel fuel leak that closed UC Berkeley’s Stanley Hall and seeped into nearby Strawberry Creek.

A pump valve failure for a diesel fuel storage tank for an emergency generator in the basement of Stanley Hall is being blamed for 1,700 gallons of fuel leaking into the basement and eventually into Strawberry Creek and the San Francisco Bay, according to university spokeswoman Janet Gilmore.

A campus police officer noticed an odor of diesel fuel coming from Strawberry Creek around 7 p.m. Saturday, Gilmore said. After an investigation, employees from the Office of Environment, Health and Safety discovered the leak and closed the building, which is the largest research building on campus and home to the university’s bioengineering department.

The leak was contained by 9 p.m. Saturday but an unspecified amount of fuel seeped into Strawberry Creek through pumps in the basement of Stanley Hall.

The emergency generator tank needs to constantly hold enough gas to power the building for 24 hours should there be an emergency, Gilmore said. It’s regularly tested to be sure it’s working, and as those tests use fuel, a dedicated storage tank sends the generator a top-off.

Read More Here…

If the tank was equipped with our simple Overfill Alarm, this spill would have been detected sooner or possibly avoided altogether.  A 110 DB alarm would have signaled a problem, and helped to bring attention to the equipment failure.

To see more about the Krueger Sentry Gauge Overfill Alarm and it’s variations, visit our site.

http://www.ksentry.com/alarm.htm

-Lee Geurts

Position: Receptionist

Date started: September 2011

Favorites:

• Color: Pink
• Pets: Cat (Ashley) and 3 goldfish
• Meal: I like pretty much everything
• Dessert: Cookies
• Hobbies: Watching dirt track racing
• Sports: Track and the Green Bay Packers

A little bit about my family:

I am a proud Auntie to my niece, Aubrianna.

Did you know:

I was diagnosed with Rhuematoid Arthritis at the age of 18.

Montana DEQ – Storage Tank Inspection

from Google Alerts – aboveground tank

Is the aboveground storage tank (AST) temporary or permanently removed from … Is the aboveground tank protected from vehicle impacts by posts constructed …
www.deq.mt.gov/pet/Forms/PDFS/StorageTankCkecklist.pdf

PDF is a check list provided by The Montana DEQ for AST self instpection.

Krueger Sentry Gauge can provide a high level overfill alarm (both visual and audible) to notify the person filling the tank that the fluid has reached 90 percent.  This should satisfy step eleven on the inspection shee.

See example products and documents from our website.

Level Gauge for visual indication

Overfill Alarm for audible indication

PDF for ordering instructions on gauges for the purpose of Overfill alert.

DEC Investigates Chemical Spill At LaFargeville Crowley Plant | WWNY TV 7 – News, Weather and Sports for | Watertown, NY | Local News

DEC Investigates Chemical Spill At LaFargeville Crowley Plant

Story Published: Dec 5, 2011 at 6:18 PM EST

Story Updated: Dec 5, 2011 at 6:18 PM EST

According to the New York State Department of Environmental Conservation, 400 gallons of chemicals spilled last week at the Crowley Foods plant in LaFargeville.

No chemicals were released into the environment.

The DEC said it received a report of the spill on December 2.

The following materials leaked:

- Sodium Hydroxide
- Sulfuric Acid
- Nitric Acid

The DEC said two doublewall aboveground storage tanks leaked their chemical product into the secondary containment of their respective tank.

Plant personnel plan to pump product back into the original tanks, use the chemical up, then replace the tanks, the DEC said.

orginal story from : http://www.wwnytv.com/

ReBlogged by Lee Geurts

www.ksentry.com

Double Wall Tanks doing their Job.  Get Chemical Level Gauges / Chemical Tank Gauges from us at Krueger Gauge.

Examples

All Stainless Gauges

All Plastic Gauges

Don’t turn DEF ear to low diesel exhaust fluid

Diesel exhaust fluid (DEF for short) is becoming more common as a key ingredient in diesel engine emission controls. Introduced to North American car drivers in certain Mercedes vehicles in 2006, it spread to the heavy trucking industry in 2007. Now DEF has hit the Detroit Three light truck market.

Ford, GM and certain Dodge diesels trucks come with an extra tank to carry the DEF necessary to meet emission regulations (the Dodge Ram 2500 and 3500 series meet the regulations without a DEF system).

DEF is essentially a 32-per-cent urea-water solution that is injected at a variable rate into the vehicle’s catalytic converter to reduce nitrous-oxide (NOx) emissions.

The amount injected is calculated by the main engine computer and varies dependent on engine load and speed as well as operating temperatures and several other in-puts. DEF is used, on average, at a rate of three per cent of the amount of fuel consumed.

When the DEF stream hits the hot inner surfaces of the catalytic converter it vaporizes and decomposes to form ammonia and carbon dioxide.

The ammonia is then used to convert the NOx emissions to harmless nitrogen and water.

For those who think the system is just another piece of technology that can be ignored, think again. If a DEF tank is left to run dry, the engine will not start.

If the tank runs low while the engine is running, a series of warning messages and lights will appear on the instrument cluster but the vehicle will continue to run until it is switched off by the driver (and then of course it will not restart).

DEF on-board tanks will hold about 30 litres of the fluid. Four-litre jugs can be purchased from most aftermarket parts stores or dealerships (that sell DEF vehicles) for around $12. In the U.S. many heavy truck refuel-ling centres dispense DEF at bulk pumps next to regular fuelling stations for as little as $4 U.S. a gallon.

REad the article at: The Ottawa Citizen

Reblogged by Lee Geurts with Krueger Sentry Gauge Company

Krueger Sentry Gauge manufactures a simple liquid level gauge for above ground bulk storage tanks that works great with DEF.

DEF Liquid Level Gauge

The following PDF is the NFPA Code for above ground storage tank (AST) installation.

Above-Ground-Tank-Installation-Relevant-NFPA-Code

On page 4, Section 4.3.2.3.3, letter C the code states the following:

Means shall be provided to prevent overfilling by sounding an alarm when the liquid level in the tank reaches 90 percent of capacity and by automatically stopping delivery of liquid to the tank when the liquid level in the tank reaches 95 percent of capacity. In no case shall these provisions restrict or interfere with the proper functioning of the normal vent or the emergency vent

Our Overfill alarms, when mounted to our standard liquid level gauge (Therma Gauge), provide a 110 DB alarm to warn that the tank is reaching capacity.  The following documents provide testing results and ordering info:

• 90% Overfill Gauge Ordering
• Intrinsically Safe Documentation on the gauge alarm
• Recommended Maintenance and Installation Procedure on liquid level tank gauges

In cases where liquids are flammable and fire protection is paramount, adding the Glass Calibration and the Aluminum Lock Nut to the gauge should eliminate the plastic from the gauge and provide a glass and metal barrier between the inside of the tank and the outside.  For additional protection, upgrade the Aluminum Nut to the Gauge Guard.

Already have a Krueger Gauge and want to get it up to code.  If the gauge is fully functional, just order our upgraded Fire Protection Gauge Repair Kit  and an overfill alarm.  In the case of the kit, we will need to know what gauge type you have.  Example part number is (-”gauge type”-Kit-GLC-ALN). Both the kit and the alarm are easily retrofitted to existing Krueger Tank Gauges.
